Description
Semi-Rigid .035″ (0.9 mm)

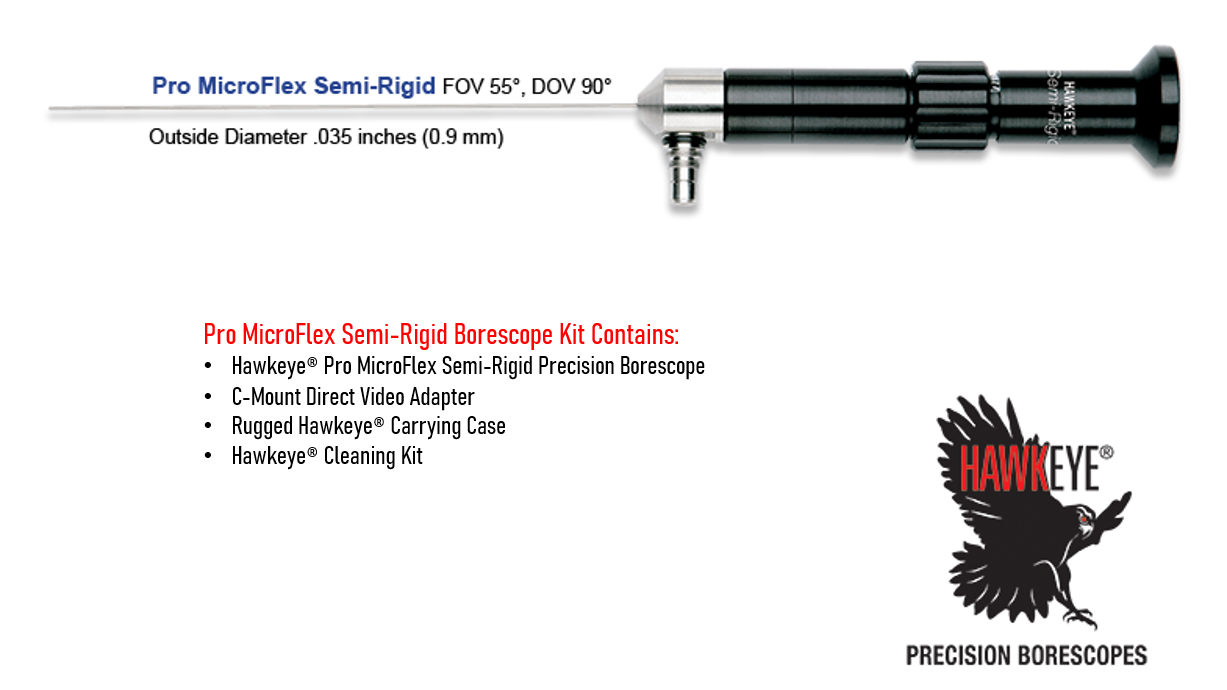

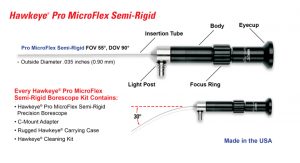

The Nitinol-sheathed Hawkeye® MicroFlex Semi-Rigid Borescopes contain 10,000 fiber imaging bundles, are 6 inches long, and offer 0º and 90º views.
Hawkeye® Pro Semi-Rigid Specifications
| Optics | |
|---|---|
| Direction-of-View | 0º and 90º |
| Field-of-View | 55º FOV |
| Depth-of-Field | 2-5mm, 1mm for the 90º DOV |
| Distal Focus | Fixed focus lens set |
| Mechanical | |
| Tube Diameter | 0.9mm (.035″) |
| Working Length | 150mm (6 inches) |
| Insertion Tube Bend Radius | N/A |
| Articulation | N/A |
| Tube Construction | Nitinol |
| Environmental | |
| Operating Temperature | 0º to 170º F (-18º to 77º C) |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth |
| Note 1 | The handpiece is splash proof only. |
