Description
Luxxor® Video Systems

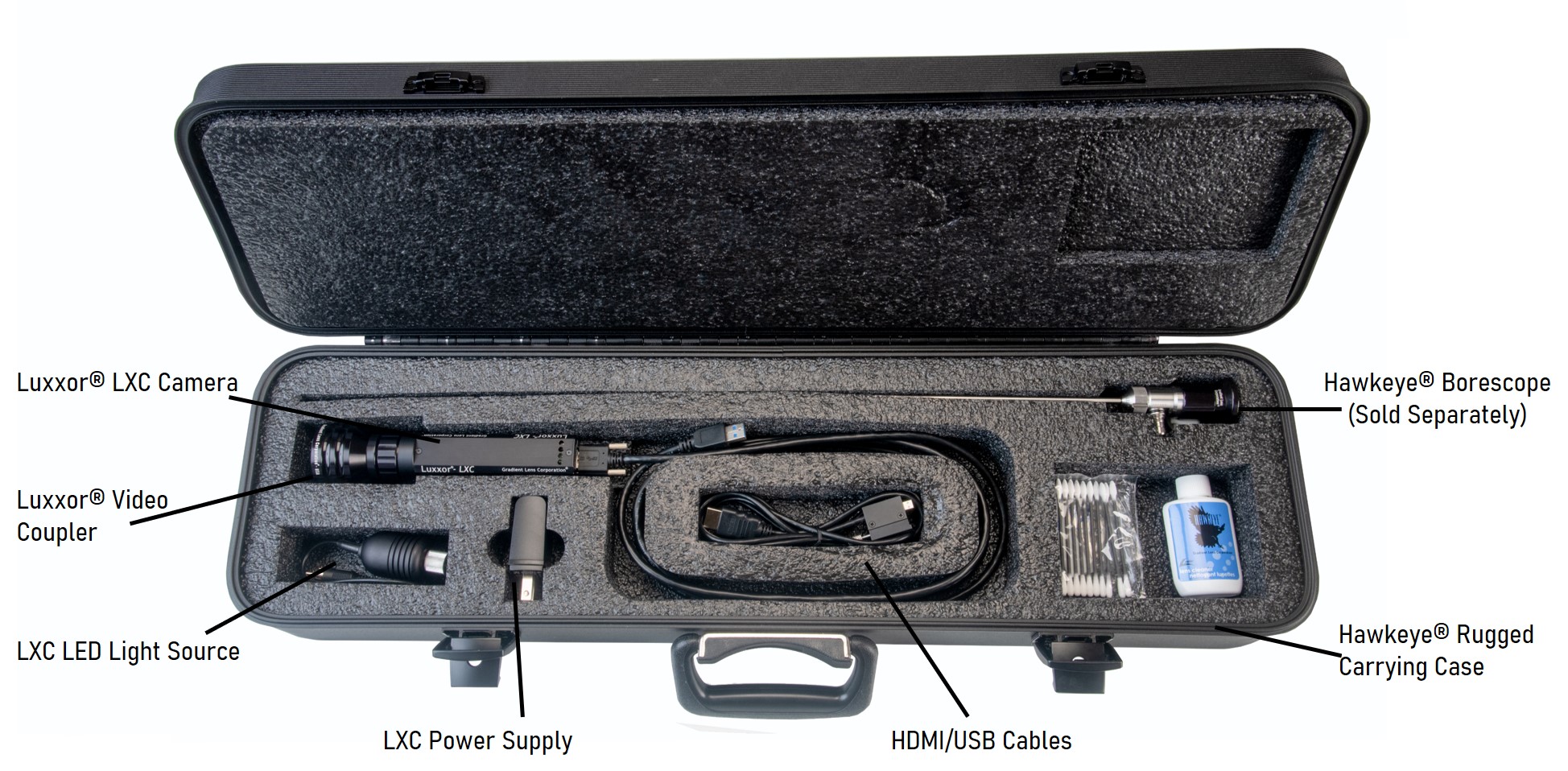

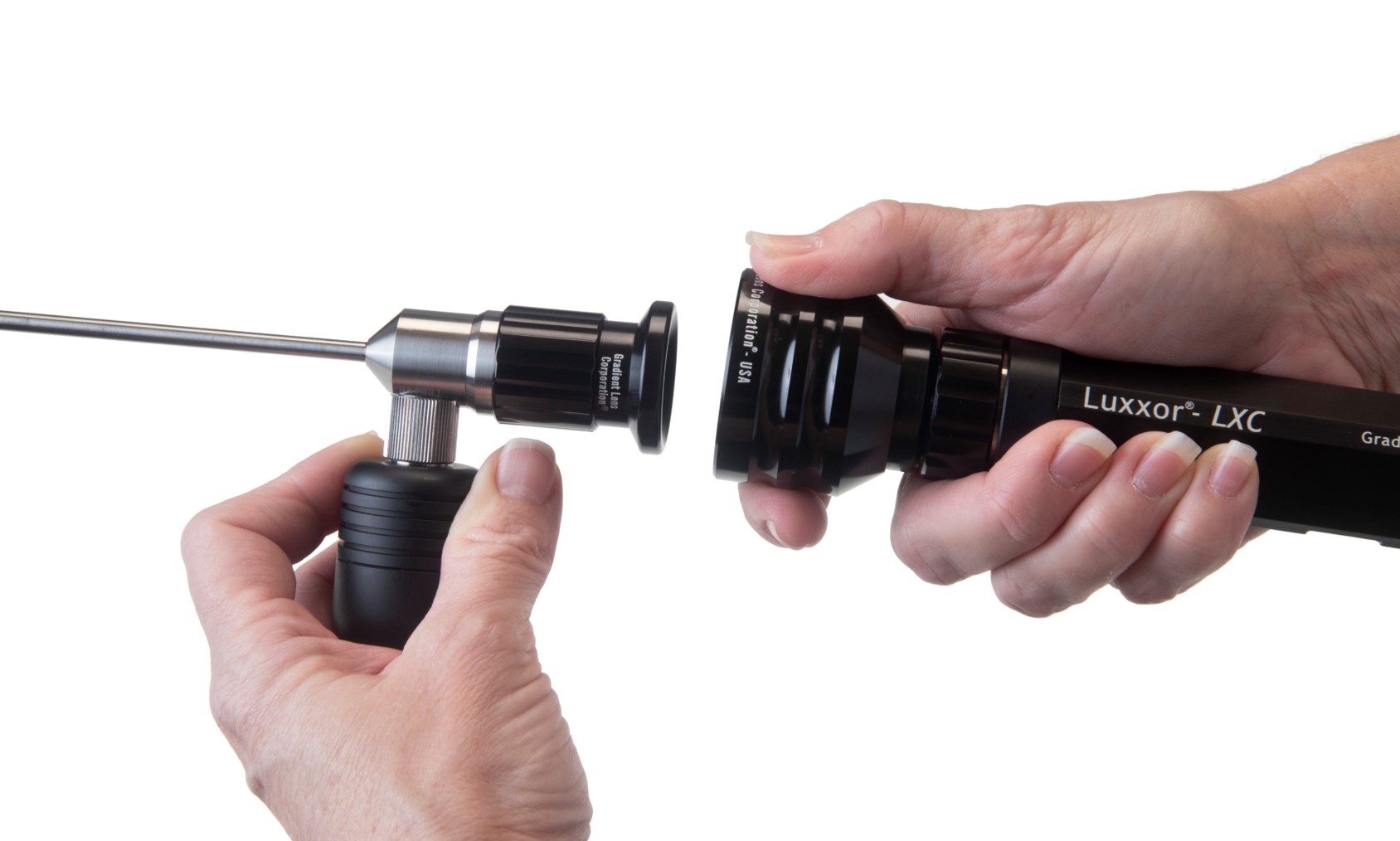

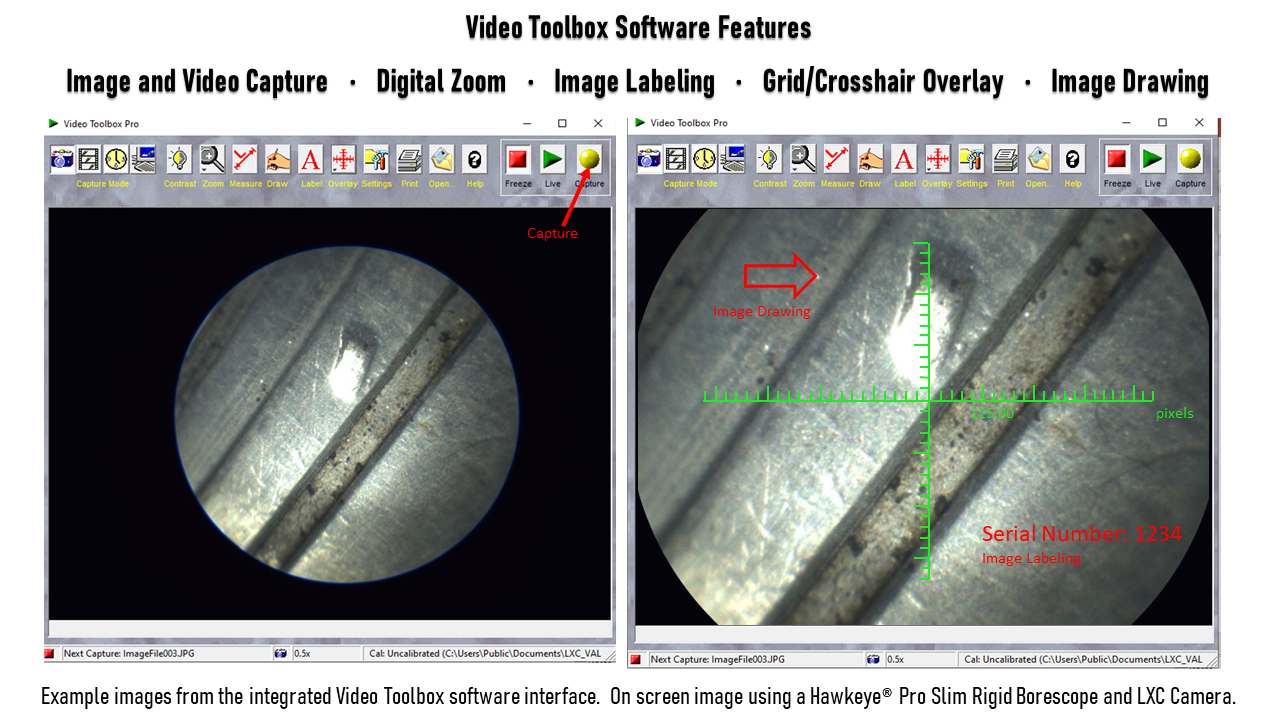

The New Luxxor LXC Camera attaches to any Hawkeye® Rigid or Flexible Borescope, transforming it into a complete Video Borescope System. The system contains the New LXC HD video Camera with 1/2.9” Sony 1.4MP CMOS sensor and IMX6 Image Processor for crystal clear images, a camera controlled LED light source, 25mm Luxxor Video Coupler lens, and Video Tool Box Software. The camera offers both USB3 and HDMI outputs, and the Video Tool Box Software allows easy still image and video capture. It also includes a zoom feature, various cross hairs and grids, and image annotation.
Optional components like the Hawkeye® Video Slide limit the variables with repetitive inspections while making them easier, faster, more efficient and much more comfortable for the user.
Luxxor® Video System Specifications
| LXC-Camera: | |
|---|---|
| Image Sensor | 1/2.9” Sony IMX273 Color CMOS, 1.58mp with IMX6 Image Processor |
| Effective Pixels | 1440 x 1080 |
| Frame Rate | 30fps |
| Video Out | USB 3.0 and HDMI |
| Lens Mount | C-Mount |
| AGC | Auto or Manual |
| Operating Temp | 0 to 40 deg C (32 to 104 F) |
| Storage Temp | -30 to +60 deg C (-22 to +140F) |
| Dimensions | 25mm x 28mm x 110mm (without video coupler lens) |
| Mount | 1/4 – 20 Tripod Thread |
| LED | Integrated bright LED light source with automatic exposure |
| Software | Integrated Video Toolbox* (Image and Video Capture, crosshair/grid overlay, digital zoom, and image labeling) |
